Mold Max™ NV Series

The Mold Max™ NV Series includes tin-catalyzed silicone rubbers, Mold Max™ 14NV and 29NV, known for low viscosity, fast curing, and fine detail reproduction. They mix at a 100A:10B ratio and cure in 4-6 hours. Ideal for molds in various applications, but not for concrete casting.
Available in Mold Max™ NV Series
Product Color Die B Tear Strength Cure Time Pot Life Specific Volume Specific Gravity Mix Ratio By Weight Shrinkage Dielectric Strength Tensile Strength Shore A Hardness Volume Resistivity Volume Resistance Thermal Conductivity Mixed Viscosity Elongation @ Break Useful Temperature (max) 100% Modulus Useful Temperature (min) Dielectric Constant, 100Hz Dissipation Factor, 100Hz

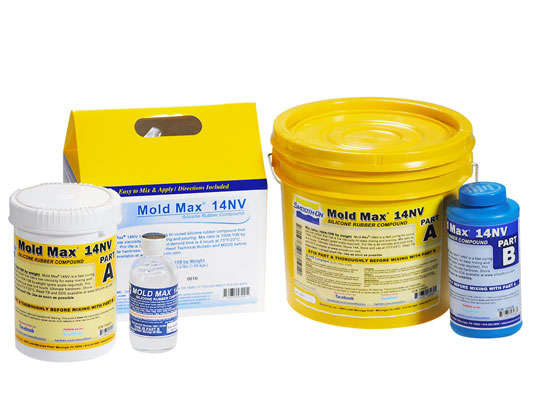

Mold Max™ 14 NV White 87 pli 4 h. 40 min. 24.7 cu. in./lb. 1.12 g/cc 100A:10B 0.002 in. / in. 330 volts/mil 490 psi 14 5.83E+13 ohm/cm 8.29E+11 ohm 0.21 W/M*K 7,500 cps 600 % 400 °F 35 psi -65 °F 3.29 0.005

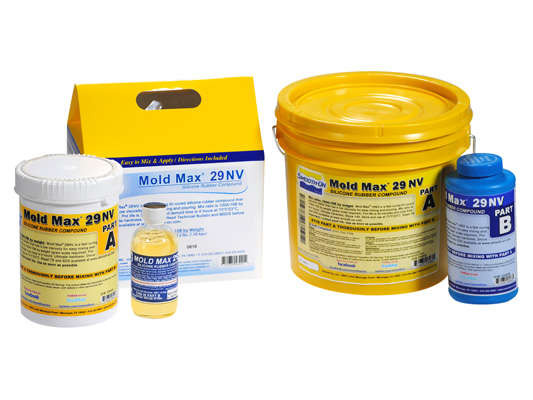

Mold Max™ 29 NV Yellow 96 pli 6 h. 40 min. 23.7 cu. in./lb. 1.17 g/cc 100A:10B 0.002 in. / in. 330 volts/mil 417 psi 29 5.83E+13 ohm/cm 8.29E+11 ohm 0.21 W/M*K 10,000 cps 361 % 400 °F 54 psi -65 °F 3.29 0.005
